MW Mean Well Plastic Case DRC-60A/B 13.8/27.6V Specific Single Output with Battery Charger (UPS Function) DC-DC Power Supply (DRC-60B)

The DRC-60 series Suitable for Security system, Emergency lighting system, Alarm system, DC UPS system, Central monitoring system, Access systems? Features: ?Universal AC input / Full range ?Protections: Short circuit / Overload / Over voltage ?Battery low protection / Battery reverse polarity protection by fuse ?Can be installed on DIN rail TS-35 / 7.5 or 15 ?Alarm signal for AC OK and Battery low via relay contact ?Cooling by free air convection ?Pass LPS ?LED indicator for power on ?100% full load burn-in test? DRC-60 is a 60W AC/DC DIN rail type security power supply series. In addition to the primary output, there is a charger output with a smaller rated current, enabling the backup power supply application the security access systems require. DRC-60 accepts the universal input between 90 VAC and 264 VAC, and supplies 13.8 VDC and 27.6 VDC at output, respectively. With the efficiency up to 88%, it can operate with air convection cooling under -30 ? through 70 ?. In addition to the key protection features such as overload protection, over voltage protection, battery low cut off, and battery reverse polarity protection ( by fuse), the alarm signal for AC OK and battery low signaling is provided, via relay contact output, to facilitate the system design.

• Original and Genuine DRC-60W|(13.8V/2.8A 13.8V/1.5A).(27.6V/1.4A 27.6V/0.75A) For Central monitoring security?Alarm?Emergency lighting system
• The DRC-60 series is one 60W AC/DC DIN rail power supply.

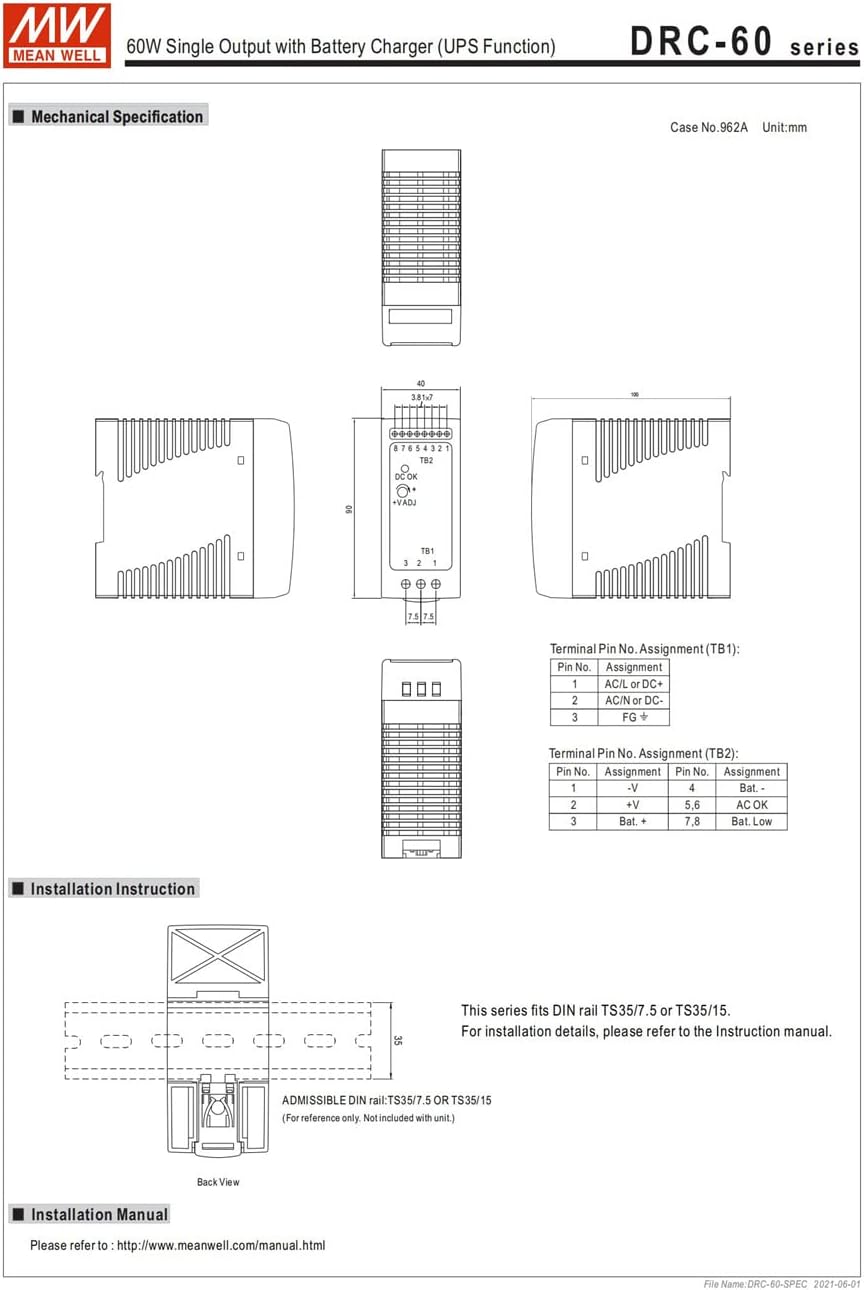

• Input 90-264Vac, Can be installed on DIN rail TS-35/7.5 or 15
• Pass LPS?Short circuit/Over load/Over voltage Protections
• 30 years of well-known standard power supply brand,supporting mass wholesale.
